How to Use Ac Manifold Gauge Set R134A: Master HVAC Troubleshooting Techniques

To use an AC manifold gauge set for R134A, connect the hoses to the appropriate ports on the AC system and the gauge set, following the manufacturer’s instructions for your specific set. Using an AC manifold gauge set for R134A is essential for diagnosing and troubleshooting issues with your vehicle’s air conditioning system.

This versatile tool allows you to measure pressure levels in the system, ensuring it is functioning optimally. By connecting the hoses to the AC system’s low and high pressure ports, and the gauge set, you can accurately monitor and analyze the system’s performance.

With the help of the gauge set’s pressure readings, you can identify potential problems such as refrigerant leaks or compressor issues. This knowledge is invaluable for efficient repairs and maintenance, ultimately ensuring a cool and comfortable driving experience.

Exploring The Functionality Of An Ac Manifold Gauge Set

The AC manifold gauge set is an essential tool for HVAC professionals when it comes to troubleshooting and servicing air conditioning systems. This versatile tool allows technicians to accurately measure the pressure levels and temperature of the refrigerant within the system, providing valuable insights into its functionality.

A typical AC manifold gauge set consists of three components – the low-pressure gauge, the high-pressure gauge, and the manifold valves. The low-pressure gauge measures the pressure on the suction side of the system, while the high-pressure gauge measures the pressure on the discharge side. The manifold valves, on the other hand, allow the technician to control the flow of refrigerant and connect the gauges to the system.

One important aspect of using an AC manifold gauge set is selecting the appropriate refrigerant for the system being serviced. The R134A refrigerant is commonly used in modern HVAC systems due to its environmental friendliness and its compatibility with most air conditioning systems. Using the correct refrigerant can ensure accurate readings and prevent damage to the system.

Step-by-step Guide: How To Use An Ac Manifold Gauge Set

Using an AC manifold gauge set, such as the R134A, can help you troubleshoot and diagnose issues with your AC system. Before connecting the manifold gauge set, it’s important to prepare the AC system for troubleshooting. Start by ensuring the AC system is off and the engine is cool. Locate the low pressure service port and the high pressure service port on the AC system. Remove the caps from both ports and secure them in a safe place. Next, connect the blue hose to the low pressure service port and the red hose to the high pressure service port. Then, connect the yellow hose to a vacuum pump or refrigerant canister. Once the manifold gauge set is connected, you can interpret the readings. The low side pressure reading indicates the refrigerant’s suction pressure, while the high side pressure reading reflects the refrigerant’s discharge pressure. By comparing the readings to the manufacturer’s specifications, you can identify potential issues with the AC system.

Troubleshooting Common Hvac Issues Using An Ac Manifold Gauge Set

Using an A/C manifold gauge set R134A can help troubleshoot common HVAC issues. One key problem that can be identified using this tool is low refrigerant levels. Low refrigerant levels can cause the A/C system to blow warm air or not cool efficiently. By connecting the manifold gauge set to the system, you can determine if the refrigerant is below the recommended level. Another common issue that can be resolved with an AC manifold gauge set is identifying leaks. The gauge set allows you to perform a leak test and pinpoint the location of the leakage. Moreover, the gauge set can help assess high and low pressure conditions in the AC system. By analyzing the readings on the gauge set, you can determine if there are any problems with the compressor or other components of the system.

Conducting A Comprehensive Hvac System Diagnosis

When it comes to conducting a comprehensive HVAC system diagnosis, analyzing temperature differentials across the AC system and evaluating compressor performance using manifold gauge readings are crucial steps. By connecting the AC manifold gauge set R134A to the low and high-pressure ports, you can measure the pressure levels in the system. The low-pressure side reading should be between 25-45 psi, while the high-pressure side reading should be between 200-250 psi for a properly functioning system.

Moreover, understanding the temperature differentials across the AC system is essential. Start by measuring the ambient temperature and then compare it to the temperature reading at the air intake vent. The temperature difference should be around 15-20 degrees Fahrenheit. Additionally, check the temperature reading at the air conditioning outlet vent. The temperature should be at least 15 degrees cooler than the ambient temperature.

By analyzing these temperature differentials and evaluating the compressor performance using the manifold gauge readings, you can diagnose potential issues in the HVAC system. Remember to refer to the manufacturer’s instructions for specific details on using the AC manifold gauge set R134A.

Best Practices And Safety Measures For Ac Manifold Gauge Set Usage

Proper usage of the AC Manifold Gauge Set plays a crucial role in the effective functioning of air conditioning systems. To ensure safety while handling refrigerants, it is important to follow specific precautions. Firstly, always wear protective gear such as gloves and safety goggles to shield yourself from any potential harm. Additionally, make sure to work in a well-ventilated area to minimize the risk of inhaling harmful fumes. When connecting the manifold gauge set to the AC system, double-check the connections to avoid refrigerant leaks. Regular inspection and maintenance of the gauge set equipment are essential for longevity and accuracy. Properly store and transport the gauge set to prevent any damage. It is vital to handle refrigerants responsibly and dispose of them in accordance with regulations. These measures together ensure a safe and efficient usage of the AC Manifold Gauge Set.

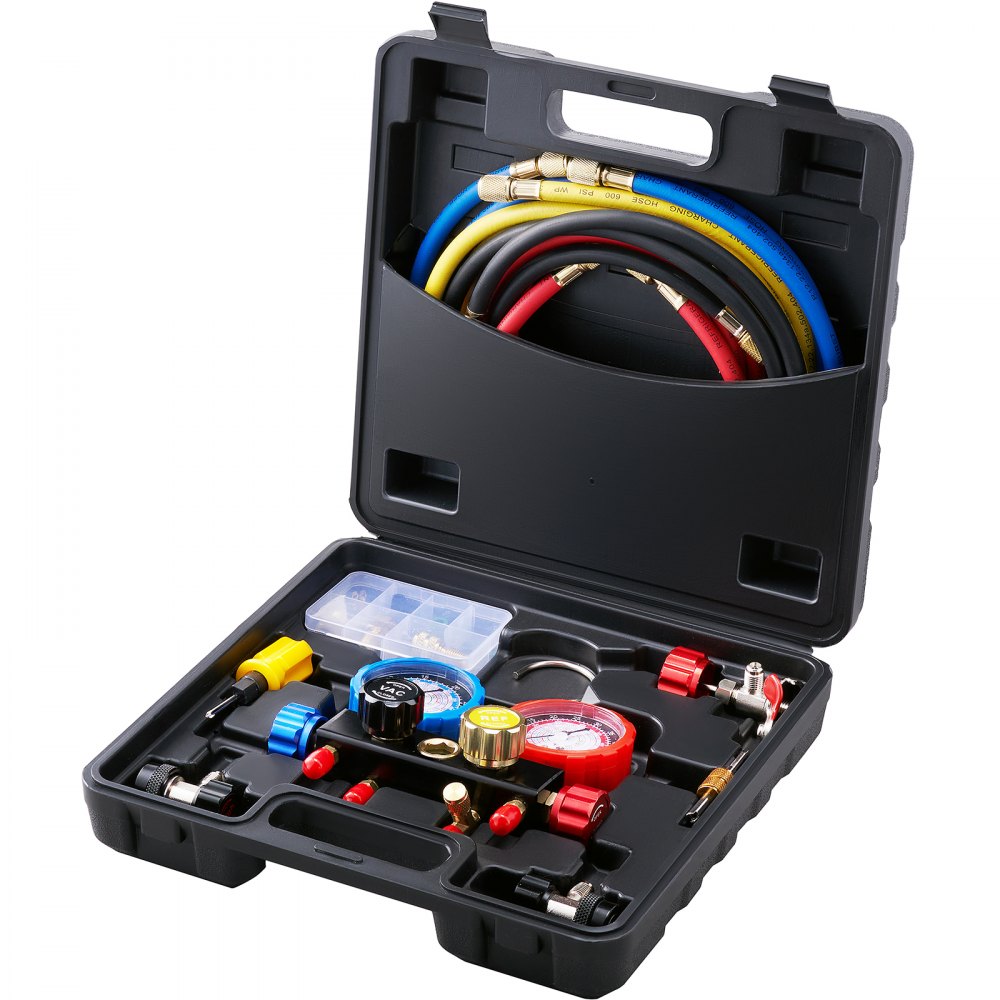

Credit: www.vevor.com

Frequently Asked Questions On How To Use Ac Manifold Gauge Set R134a

How Do I Use An Ac Manifold Gauge Set For R134a Refrigerant?

Using an AC manifold gauge set for R134A refrigerant is quite easy. First, attach the blue hose to the low-pressure side of the AC system and the red hose to the high-pressure side. Then, connect the yellow hose to a refrigerant can, ensuring it’s securely attached.

Finally, open both the low and high side valves and read the gauge readings to determine the pressure levels in the system.

Conclusion

To conclude, using an AC manifold gauge set R134A is essential for diagnosing and maintaining your air conditioning system. By following the proper procedures, you can easily determine the refrigerant levels, identify leaks, and make necessary adjustments. Regularly checking and regulating your AC system will not only improve its performance but also extend its lifespan.

So, equip yourself with an AC manifold gauge set and keep your air conditioning running smoothly all year round.
